Hook lift garbage truck is used for garbage transfer and unloading operation in urban garbage compactor stations.Main equipments including chassis,frame,hydraulic system and garbage container.It has manual or electrical control mode,all operation is completed by the hydraulic control system.
Item No :
HLGT002Order(MOQ) :
1 unitPayment :
TT,LCProduct Origin :
Suizhou,Hubei,ChinaColor :
MulticolorShipping Port :
Shanghai,Wuhan,HogrosLead Time :
7-15 daysWeight :

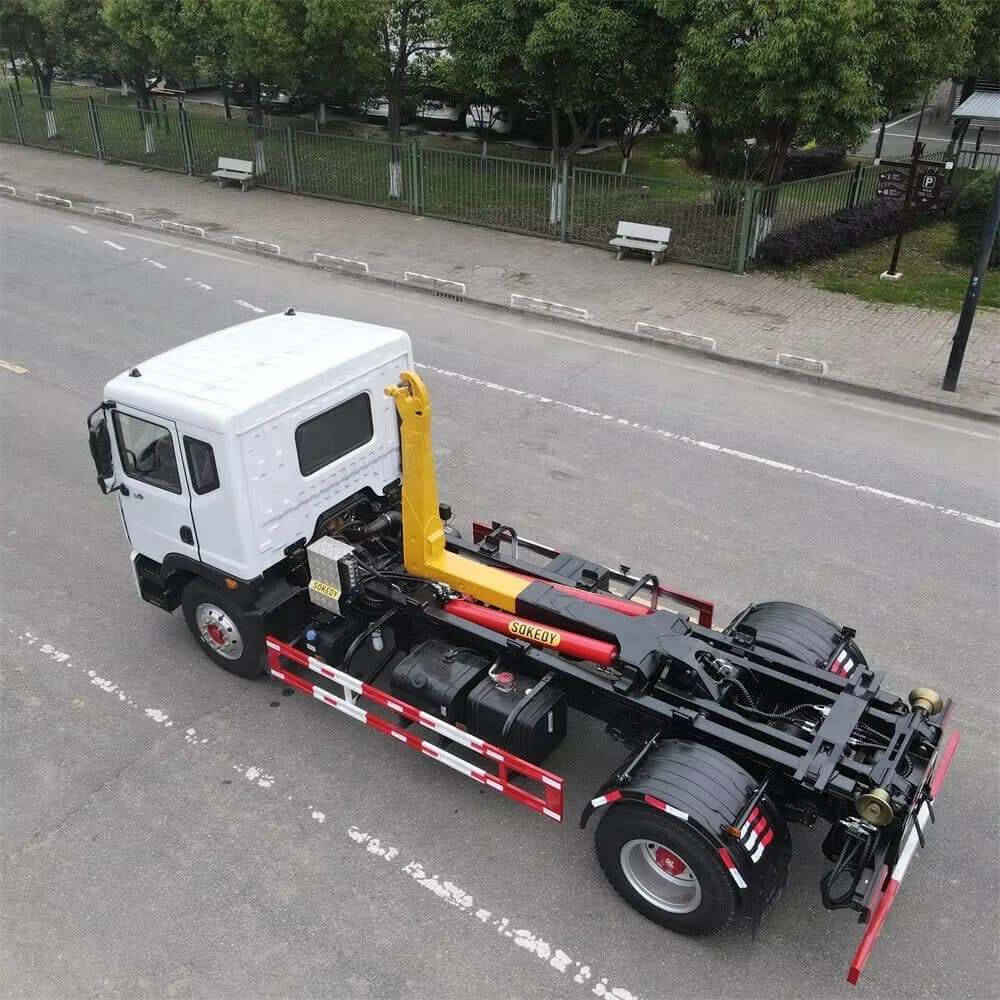

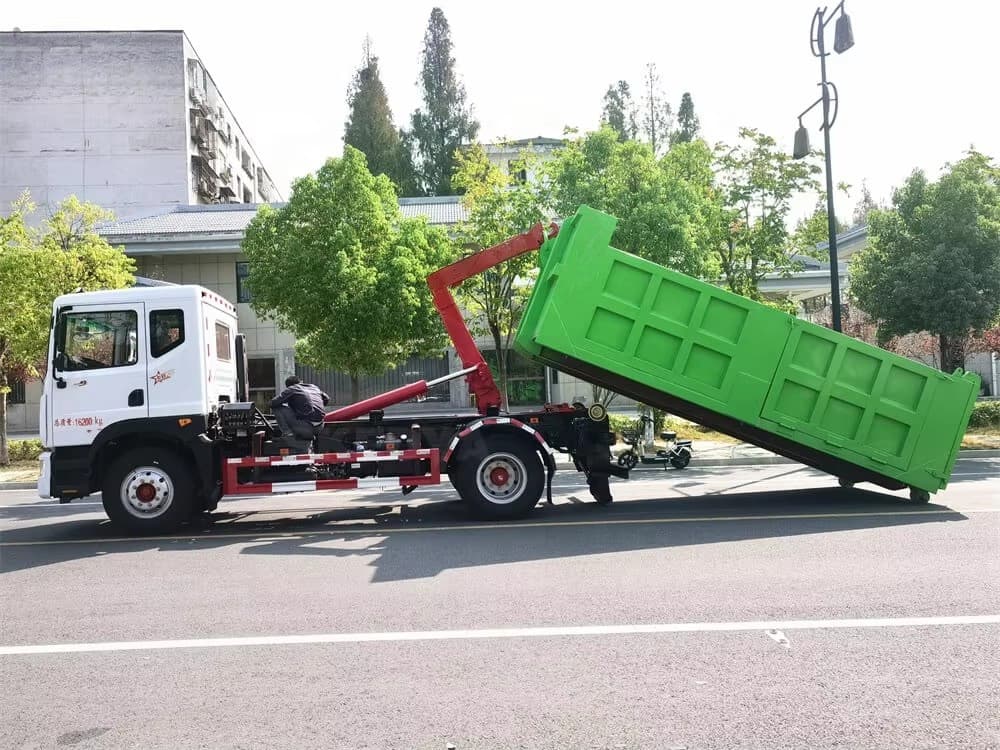

15000kgDongfeng 4x2 10ton Hook Lift Garbage Truck
Product Description
1. Dongfeng 4x2 10 Ton Hook Lift Garbage Truck adopts DUOLIKA chassis, Cummins 140HP engine ,8 forwarder & 1 reverse transmission,9.00R20 tires.
2. Hooking capacity: 10tons,with Wilber telescopic boom, high-strength boom and structural frame, equipped with imported oil cylinder, sealing ring, multi-way valve, plunger hydraulic oil pump and wireless remote control operator,removable reinforced hydraulic rear leg,manual or wireless remote control operation.
3. One truck can be equipped with some garbage containers for recycling.Garbage containers can be divided into living garbage containers,construction garbage containers,split garbage stations and mobile compression garbage stations.
Specification of Dongfeng 4x2 10ton Hook Lift Garbage Truck
|
Specification |
||
|
Truck specification |
|
|
|
Product name |
Dongfeng 4x2 10ton Hook Lift Garbage Truck |
|
|
Overall dimension |
7650x2500x3150mm |
|
|
Chassis specification |
|
|
|
Cabin |
DUOLIKA cabin,2 persons allowed ,A/C is equipped |
|
|
Drive type |
4x2, Left Hand Drive; New condition |
|
|
Wheelbase |
3950/4500/4700mm |
|
|
Fuel type of engine |
Diesel |
|
|
Engine |
Model |
Cummins |
|
Maximum horsepower |
140/170/190HP |
|
|
Number of cylinders |
6 |
|
|
Emission standard |
Euro III/IV/V/VI |
|
|
Gearbox |
Type |
Manual,8 forward & 1 rear |
|
Tyres |
Size |
9.00R20 |
|
Quantity |
6+1 spare tire |
|
|
Upperbody specification |
|
|
|
Superstructure |
Loading capacity |
10 tons |
|
Dustbin material |
Anti-corrosive steel |
|
|
Hydraulic system |
Import or Chinese top brand multitandem valve and cylinders |
|
|
Control method |
Manual control or remote control |
|
|
Self-discharging incline angle |
50° |
|
|
Lifting time |
≤60S |
|
|
Unloading time |
≤60S |
|
