LPG tank semi-trailer is made by installing pressure vessel tank, pressure gauge, explosion-proof disc, explosion-proof cap and other components on the basis of semi-trailer.
With reasonable structure, safety and reliability, convenient operation, easy maintenance and other characteristics, LPG tank semi-trailer for sale is a special vehicle used to transport natural gas, liquefied petroleum gas, propane, propylene, dimethylether, liquid ammonia, methylamine, acetaldehyde and other liquefied gases.
Item No :
LPGT001Order(MOQ) :
1 unitPayment :
TT,LCProduct Origin :
Suizhou,Hubei,ChinaColor :
mulitcolorShipping Port :
Shanghai,Wuhan,HogrosLead Time :

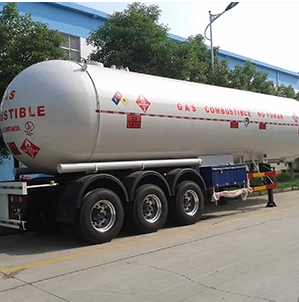

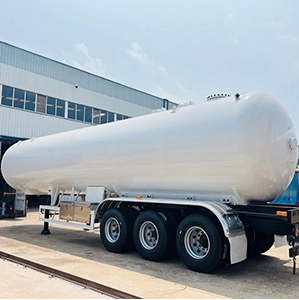

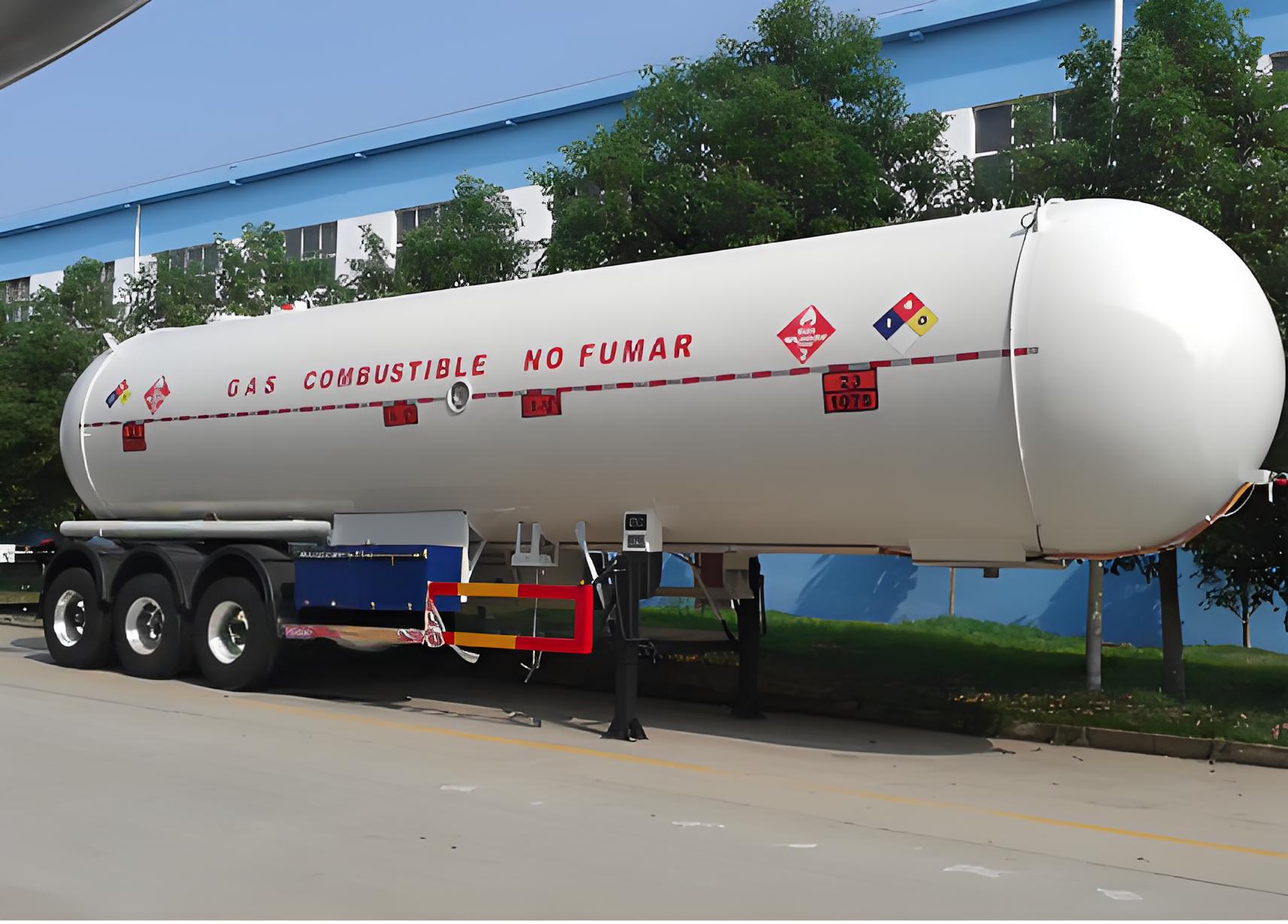

7-15 daysASME 58m³Propane LPG Tank Semi-trailer
Product Description
1. The 58m³propane lpg tank semi-trailer is produced according to ASME standard. Trailer use 3 axle. BPW brand or FUWA brand. Loading weight is around 29tons.
2. The main material of the tank body is ASME standard required steel plate, model is SA516. for pressure vessels;Thickness of tank body is 14mm. Design pressure is 1.61Mpa
3. Safety accessory parts: safety valve, safety valve cover, single outlet double valve box, single tool box, level gauge, pressure gauge, thermometer, emergency shut-off valve, fire extinguisher, fire star cover, anti-static grounding tape, guard rail, tire guard board
Specification of ASME 58m³Propane LPG Tank Semi-trailer
|
SPECIFICATION |
|
|
Semi-trailer specification |
|
|
Product name |
ASME 58m³Propane LPG Tank Semi-trailer |
|
Volume of tank |
58000liters/ 58cbm/58m3/ 29tons ASME Standard |
|
Overall Dimensions(L*W*H)(mm) |
13000*2480*3800 |
|
Tank Dimensions (Inner Diameter*thickness*Length) |
2450*11.5*12340 |
|
Estimated Tare Weight (kg) |
16480 |
|
Payload (kg) |
29000 |
|
Total weight (kg) |
39000 |
|
Wheelbase(mm) |
6865+1310+1310 |
|
Shell of Tank |
|
|
Products |
Liquefied Petroleum Gas (propane) |
|
Fluid property |
Flammable |
|
Design Temperature(℃) |
-50°C~60°C |
|
Design Pressure(MPa) |
1.61 |
|
Corrosion Allowance(mm) |
1 |
|
Weld Joint Factor |
1 |
|
Major Materials of Bearing Pressure |
Tanker body:SA516,14mm, |
|
End plate:SA516,14mm,double round |
|
|
Main beam:Q345 |
|
|
Safety Accessories |
Safety valve, Level Gauge, Thermometer, Pressure Gauge, Emergency cut-off valve, Ball valve |
|
Trailer Specification |
|
|
I Beam &Chassis |
Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm,Height 500mm, Bottom Flange 16mm,width 140mm. |
|
Axle |
3 axles |
|
BPW 13 ton |
|
|
Suspension |
German design mechanical suspension |
|
Leaf spring |
13-piece leaf spring. 11x100 |
|
King pin |
JOST brand 2" Bolt-in King Pin |
|
Landing gear |
JOST brand Two-speed, manual operating, heavy duty landing gear |
|
Wheel rim |
9.00R22.5 wheel rim, 13 pieces |
|
Tire |
12R22.5 tubeless tire with one spare tire, 13 pieces |
|
Spare tire |
One set of spare tire including a carrier |
|
Braking system |
WABC0 RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks |
|
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
|
Accessories |
One standard tool box |
Customized LPG Tank Semi-trailer as below:
1. Aluminum alloy sun visor
2. Aluminum alloy tool box
3. Aluminum alloy mudguards

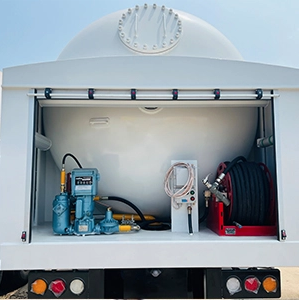

4. Flow meter and retractable reel, to monitor the liquid refilling volume.
5. Customized valves, such as internal thread type.Available for South American customers
6. Customized ASME standard LPG semi-trailer
7. Customized manhole at the end of the tank
8. Customized spherical head,optional front and rear spherical heads,or front spherical head and rear elliptical head
9. Customized walking mechanism front axle lift
10. Customized aluminum alloy steel wheel rim
Why do you choose us?

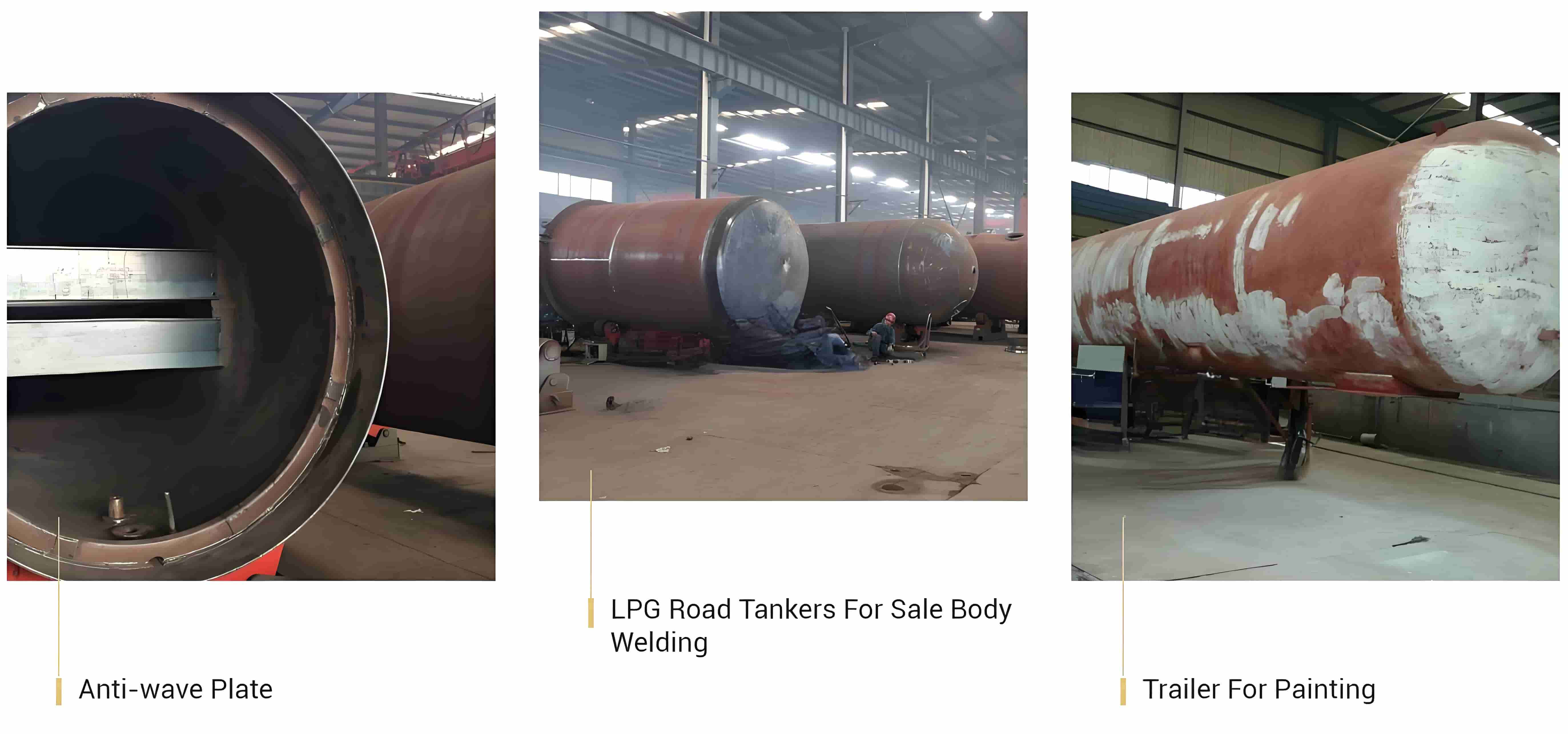

1. The surface anti-corrosion coating of LPG semi trailer adopts advanced processes such as sand blasting, rust removal,spraying and purging.
2. High quality domestic or imported safety accessories are available for users to choose from, with complete supporting facilities.
3. Scientific and advanced construction technology shall be strictly adopted to ensure the lowest shrinkage and the highest dimensional stability of our LPG tanker trailer for sale at low temperature.
4. Strict quality inspection: 100% radiographic inspection is conducted for Class A and B welds, and Class Il welds are qualified; C. 100% magnetic particle flaw detection for Class D welds, Class I qualified.
5. Our company can also design and refit LPG transport trailer suitable for most gases such as liquid ammonia, liquid sulfur dioxide, propylene, propane, liquefied petroleum gas, dimethyl ether, n-butane, isobutane, butene, isobutylene,butadiene, ethylene oxide, etc. according to customer needs.
